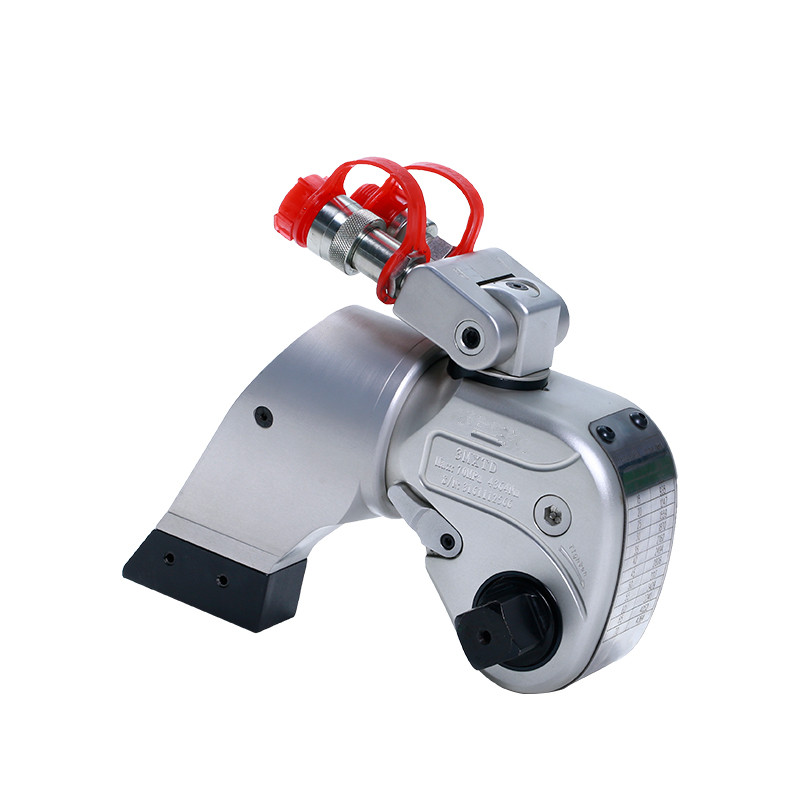

MS Series Heavy Duty Square Drive Hydraulic Wrench
70MPa max working pressure
Increased the strength and reliability of wrench
Torque accuracy up to ±3%
360X180 degree swivel joint, no space limitation
360 degree reaction arm
Al-Ti alloy material, integrated design
Suitable for high strength and high frequency fatigue work, especially for wind compression disc.
Reliable CEJN quick couplers

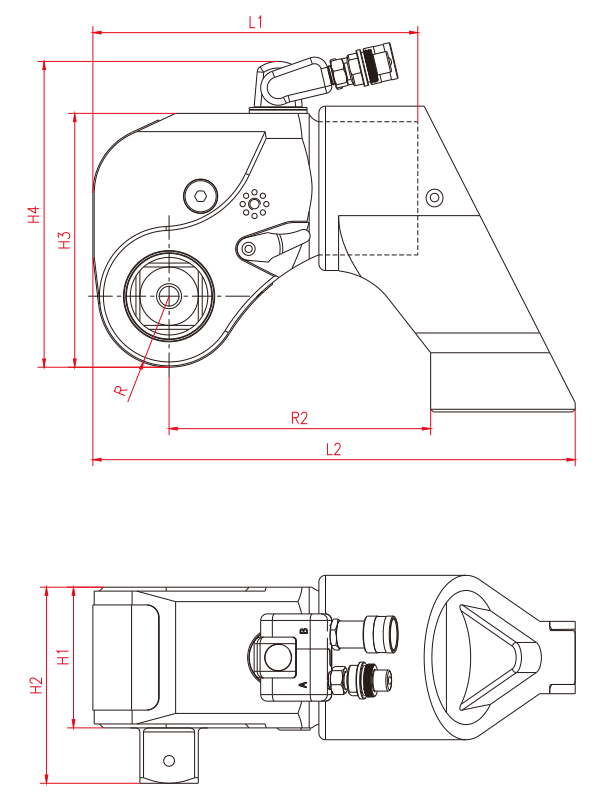

Dimensional Drawing
Specification Table
| Model | 3MXTD-MS | 5MXTD-MS | 8MXTD-MS | 10MXTD-MS | 15MXTD-MS |
| Torque range(Nm) | 404-4037 | 711-7113 | 1047-10475 | 1525-15248 | 2008-20078 |
| Weight(kg) | 5.7 | 9.8 | 13.8 | 16 | 22 |
| L1(mm) | 174 | 207 | 231 | 250 | 281 |
| L2(mm) | 250 | 296 | 331 | 366 | 402 |
| H1(mm) | 75 | 85 | 95 | 107 | 118 |
| H2(mm) | 102 | 127 | 136 | 149 | 180 |
| H3(mm) | 124 | 151 | 169 | 192 | 215 |
| H4(mm) | 167 | 193 | 211 | 231 | 254 |
| R1(mm) | 35 | 42 | 45 | 53 | 58 |
| R2(mm) | 138 | 163 | 180 | 199 | 216 |
| Square drive | 1″ | 1 1/2″ | 1 1/2″ | 1 3/4″ | 2 1/2″ |
