Special Shaped Hydraulic Torque Wrench

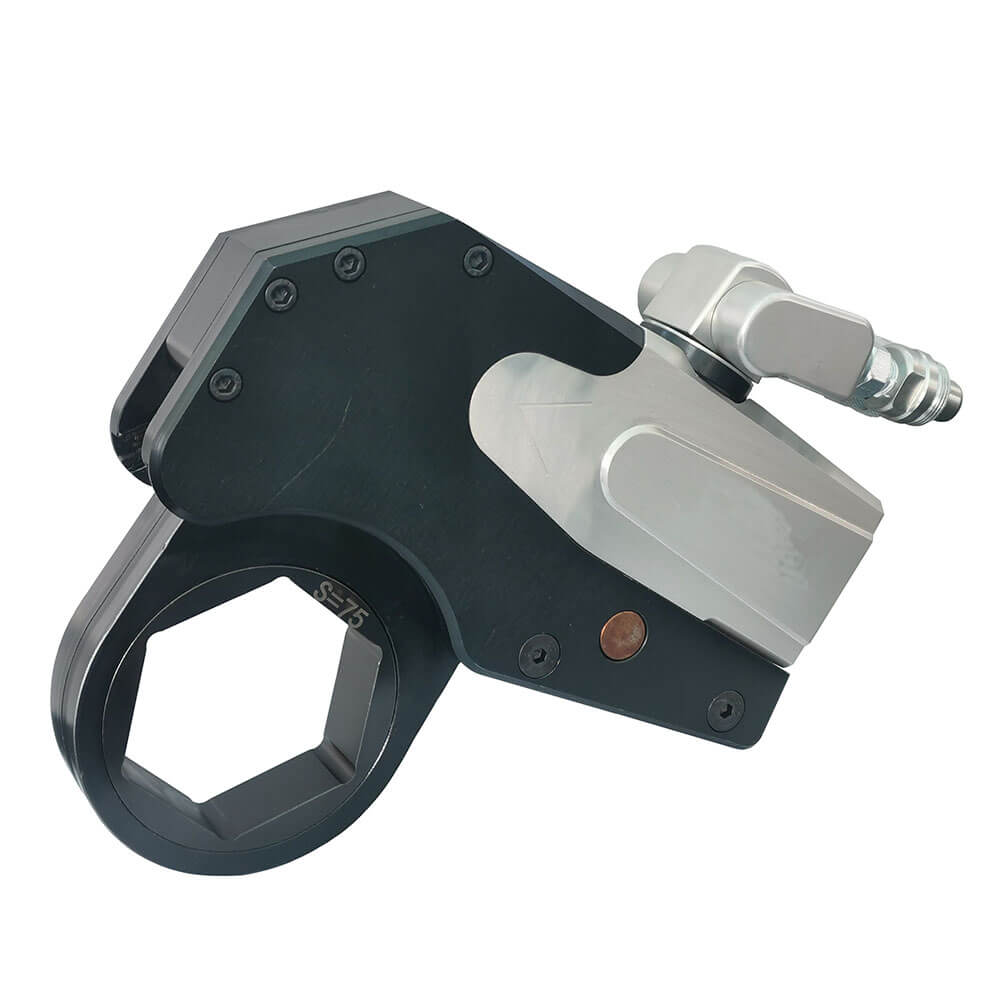

JNW Series Special Shaped Hydraulic Torque Wrench
70MPa max working pressure
Specially designed for limited space
Torque repeatability up to 3%
With ratchet design, so cyclic operation is possible.
Reliable CEJN quick couplers.
One power head can match different ratchet links.
JNW Specification Table
| Model | 1JNW | 3JNW | 4JNW | 6JNW | 8JNW | 15JNW | 25JNW |
| Torque range(Nm) | 225 2252 | 333 3337 | 523 5227 | 753 7537 | 1175 11753 | 1932 19322 | 3262 32621 |

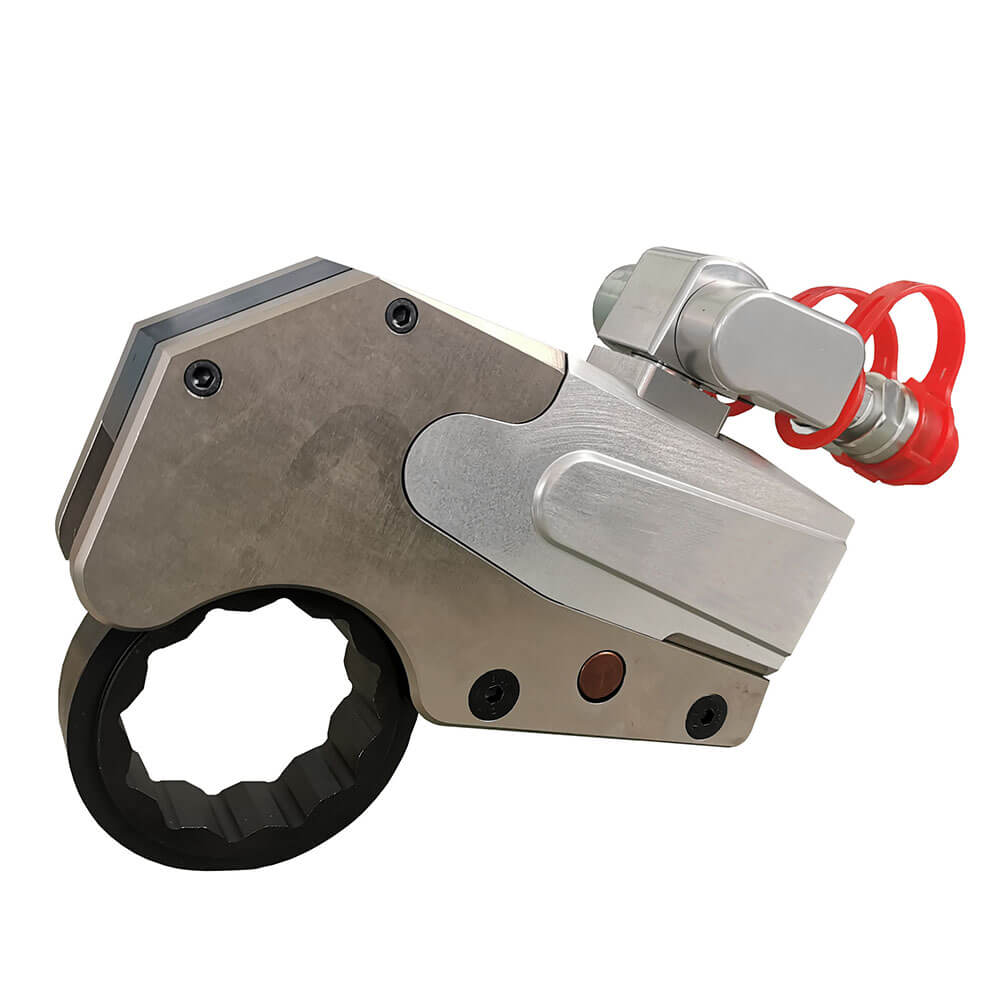

JNL Series Special Shaped Hydraulic Torque Wrench
70MPa max working pressure
Specially designed for limited space in axial and radial direction.
Torque repeatability up to 3%
Single plate force transfer design, it can work in single cycle.
Reliable CEJN quick couplers.
One power head can match different ratchet links.
JNL Specification Table
| Model | 1JNL | 3JNL | 4JNL | 6JNL | 8JNL | 15JNL | 25JNL |
| Torque range(Nm) | 225 2252 | 333 337 | 523 5227 | 753 7537 | 1175 11753 | 1932 19322 | 3262 32621 |

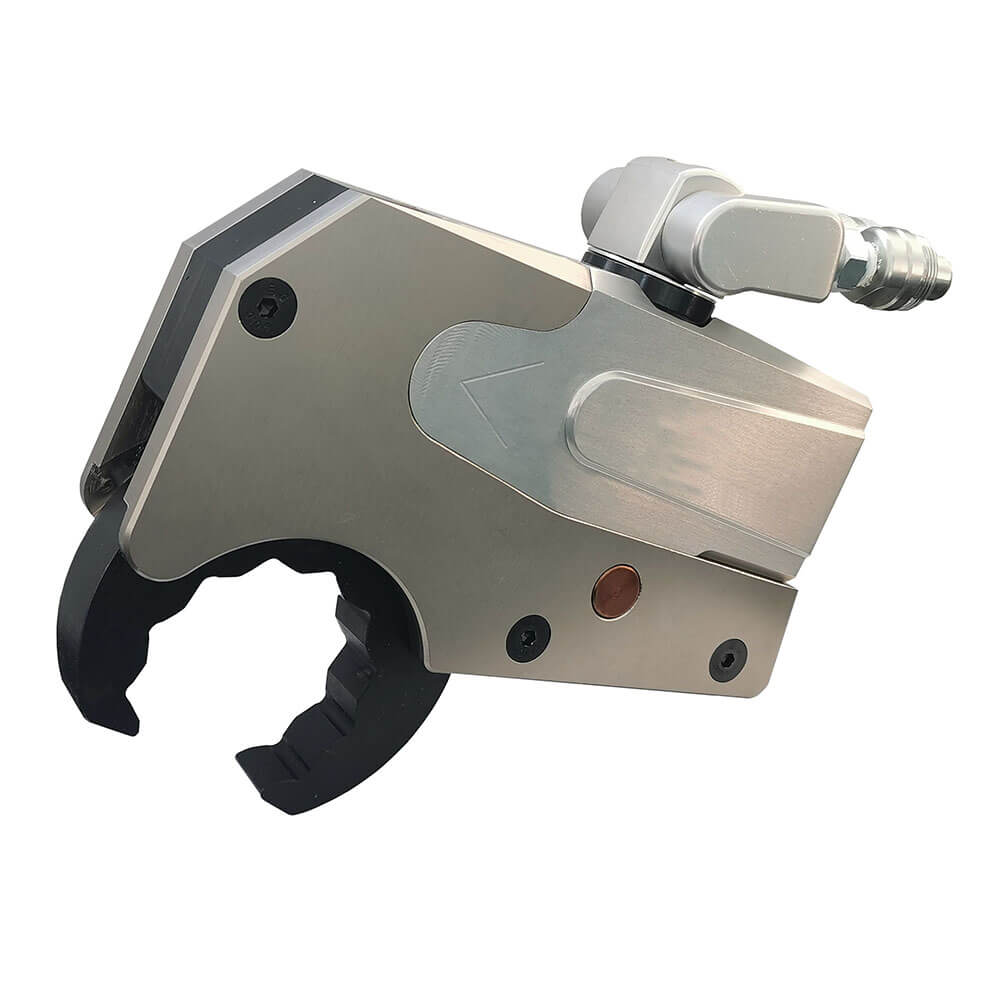

JNC Series Special Shaped Hydraulic Torque Wrench
70MPa max working pressure
Specially designed for zero space in radial direction, and limited space in axial direction.
Torque repeatability up to 3%
Single plate force transfer design, it can work in single cycle.
Reliable CEJN quick couplers.
One power head can match different ratchet links.
JNC Specification Table
| Model | 1JNC | 3JNC | 4JNC | 6JNC | 8JNC | 15JNC | 25JNC |
| Torque range(Nm) | 225 2252 | 333 3337 | 523 5227 | 753 7537 | 1175 11753 | 1932 19322 | 3262 32621 |
