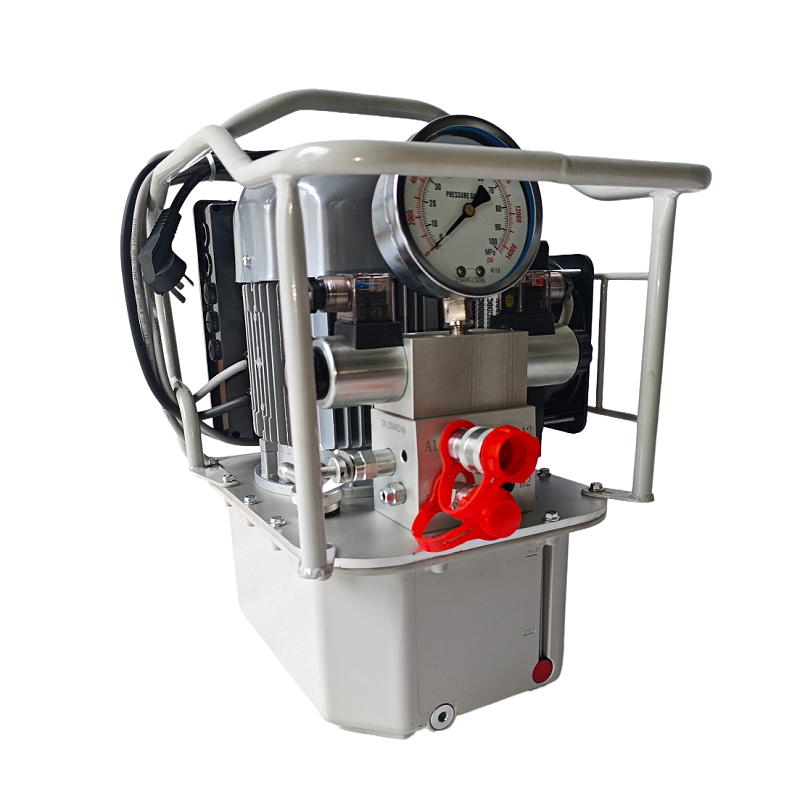

HTP-2 Series – Electric Pump For Hydraulic Wrench
- Two-stage pressure design, two flow rates can be switched automatically.
- Can drive 2-4 hydraulic torque wrenches at the same time.
- Aluminum oil tank with oil level indicator, small size, light weight.
- Brushless motor, low noise, high reliability.
- Horizontal solenoid valve, aluminum alloy embedded precision steel sleeve, stable pressure, long life.
- Aluminum oil tank with oil level indicator, small size, light weight.
- Equipped with a heat dissipation device, it can work continuously for a long time.
Contact Us
Product Dimensions
| Model | Output port | Power | Pressure (MPa) | Flow (L/min) | Oil tank (L) | Dimension (mm) | Weight (KG) | ||
| High | Low | High | Low | ||||||
| HTP-2-1 | 2X1/4 NPT | 220V 1.1KW | 70 | 6 | 0.8 | 6 | 8 | 394*300*420 | 27 |
| HTP-2-2 | 4X1/4 NPT | 220V 1.1KW | 70 | 6 | 0.8 | 6 | 8 | 394*300*420 | 27.5 |
| HTP-2-4 | 8X1/4 NPT | 220V 1.1KW | 70 | 6 | 0.8 | 6 | 8 | 394*300*420 | 28 |
