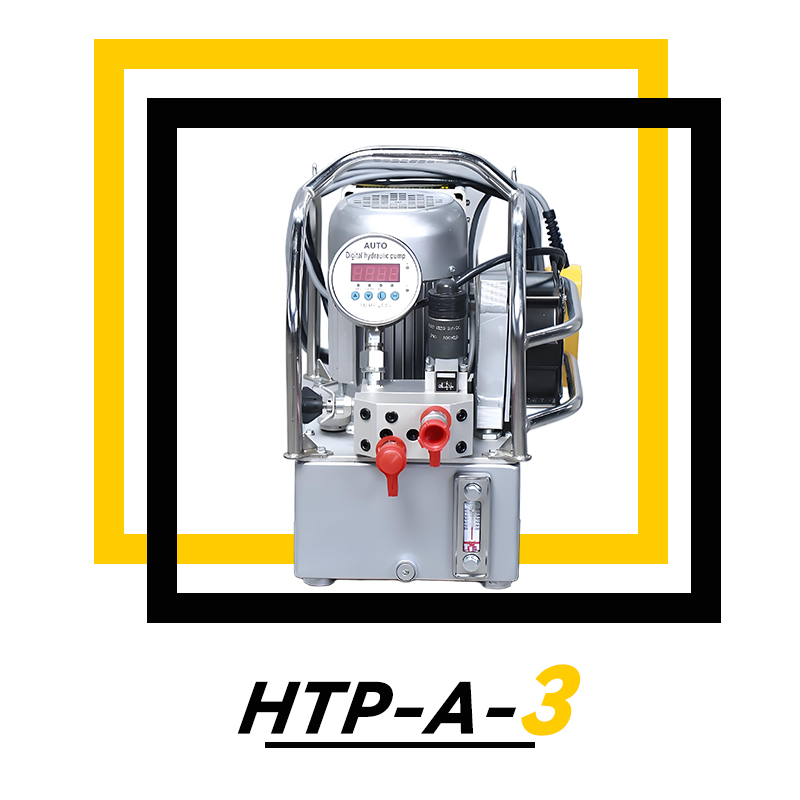

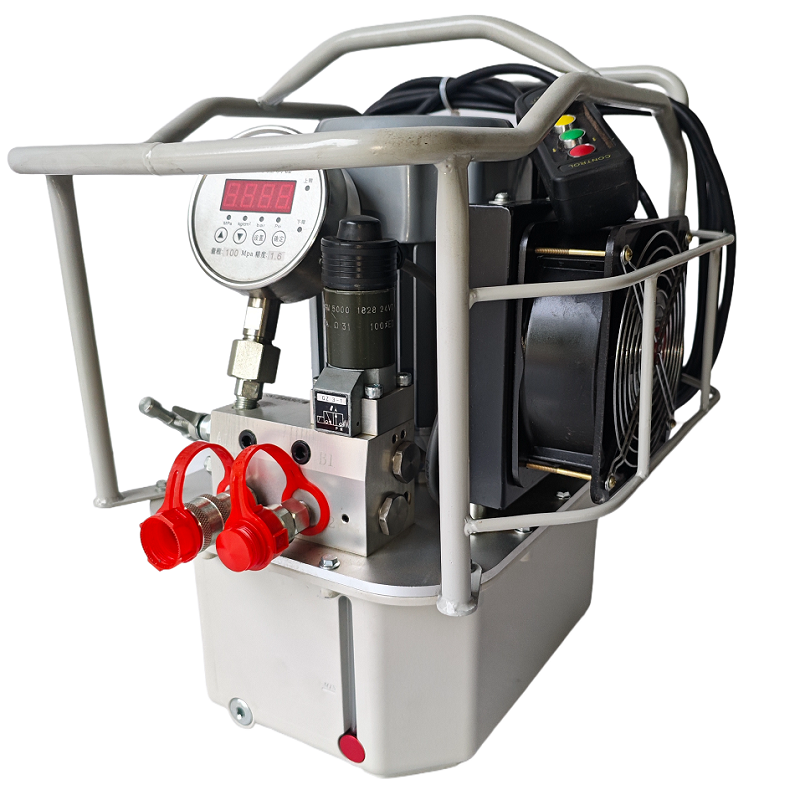

HTP-A-3 Series – Semi-Automatic Pump For Hydraulic Wrench
- Intelligent one-touch operation, just press a button to tighten and loosen the bolts.
- Three-stage pressure design, three flow rates can be switched automatically.
- Can drive 2-4 hydraulic torque wrenches at the same time.
- Intelligent cooling system, when the oil temperature is too high, automatically starts the cooling function to ensure long-term continuous work.
- Modular design, easy and quick replacement of accessories.
- Oil tanks can be customized according to user requirements.
Contact Us
Product Dimensions
| Model | Output port | Power | Pressure(MPa) | Flow(L/min) | Oil tank (L) | Dimension (mm) | Weight (KG) | ||||
| High | Medium | Low | High | Medium | Low | ||||||
| HTP-A-3-2 | 4X1/4 NPT | 220V 1.1KW | 70 | 32 | 6 | 0.8 | 1.6 | 8 | 7.6 | 394*300*420 | 28 |
| HTP-A-3-4 | 8X1/4 NPT | 220V 1.1KW | 70 | 32 | 6 | 0.8 | 1.6 | 8 | 7.6 | 394*300*420 | 28.5 |
