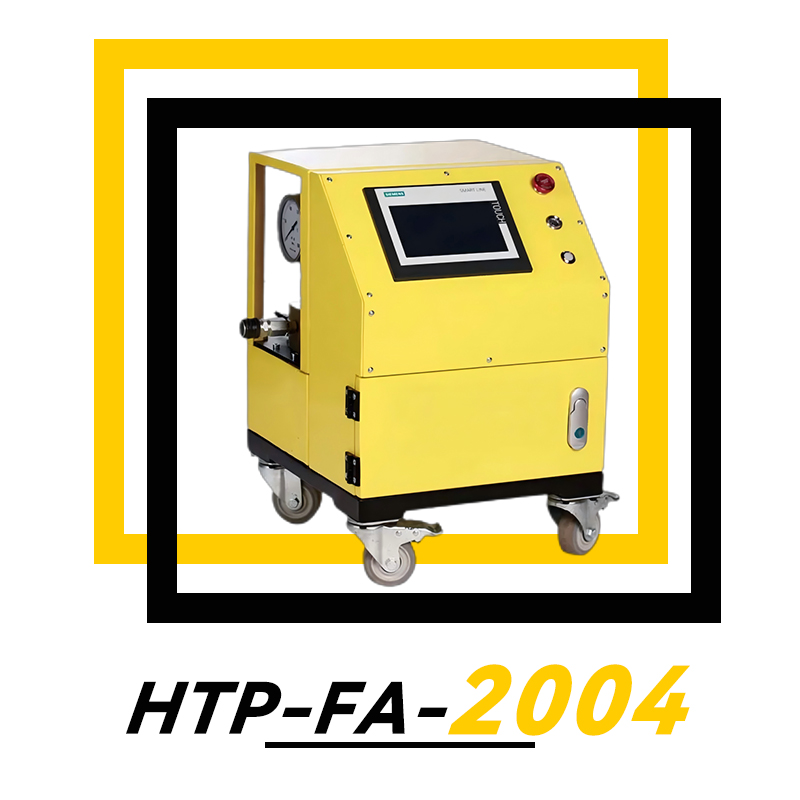

HTP-FA-2004 Series – Full-Automatic Pump For Bolt Tensioner
- Maximum pressure 200MPa.
- Adopt the Siemens controller and human-machine interface, with stable performance.
- One-touch operation, just input the tensile force, easy to operate.
- The automatic pressure compensation function eliminates pressure loss caused by mechanical deformation, making tensioning more accurate.
- Automatic pressure relief function.
- Operation data can be downloaded and queried.
Contact Us

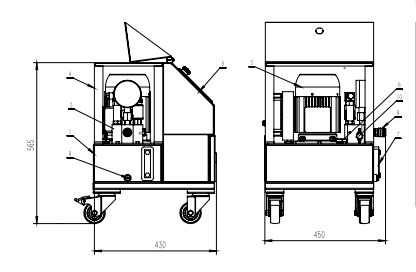

Product Dimensions
| Model | Output port | Power | Pressure(MPa) | Flow(L/min) | Oil tank (L) | Dimension (mm) | Weight (KG) | ||
| High | Low | High | Low | ||||||
| HTP-FA-2004 | G1/4 | 220V 1.1KW | 200 | 3 | 0.3 | 2.5 | 8 | 400*380*600 | 55 |
