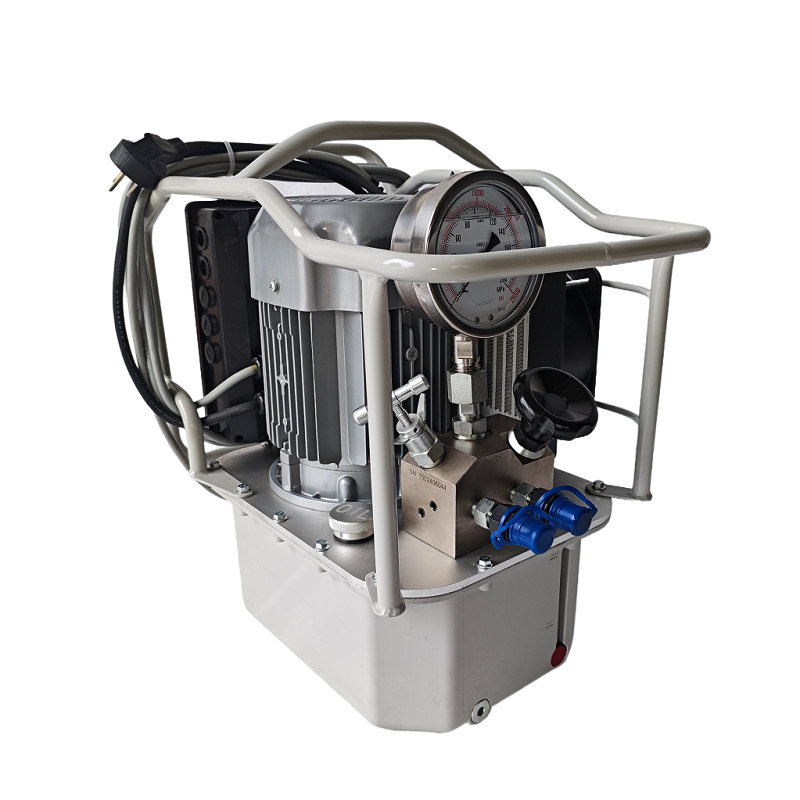

HTP2004 Series – Ultra High Pressure Pump For Bolt Tensioner
- Maximum pressure 200MPa, two flow rates can be switched automatically.
- Aluminum fuel tank with oil level indicator, small size, light weight.
- Brushless motor, low noise, high reliability.
- Contact start-stop button, stable pressure increase, good pressure retention.
- Needle pressure regulating valve and stop valve, wear-resistant coating structure, and stronger wear resistance.
- High-flow high-efficiency radiator, maintains constant oil
temperature, ensures long-term work.
Contact Us

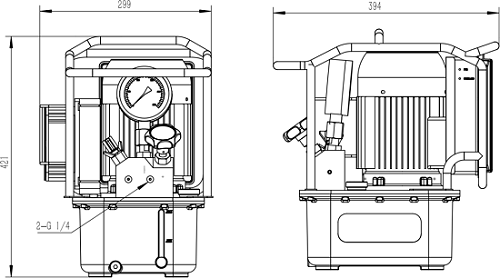

Product Dimensions
| Model | Output port | Power | Pressure(MPa) | Flow(L/min) | Oil tank (L) | Dimension (mm) | Weight (KG) | ||
| High | Low | High | Low | ||||||
| HTP2004 | G1/4×1 | 220V 1.1KW | 200 | 3 | 0.3 | 2.5 | 8 | 394*300*420 | 24 |
| HTP2004-2 | G1/4×2 | 220V 1.1KW | 200 | 3 | 0.3 | 2.5 | 8 | 394*300*420 | 24 |
