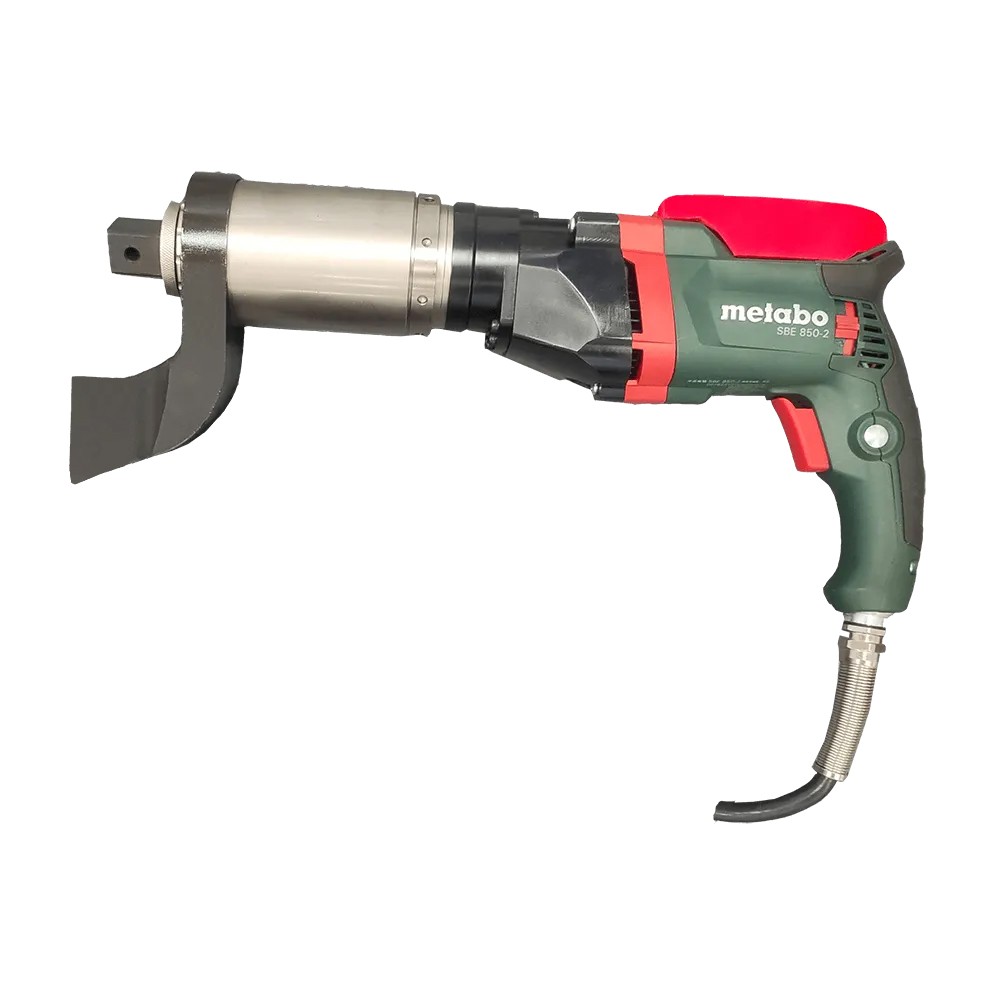

ETW Series Electric Torque Wrenches

1. Powered by the reliable Germany Metabo, brushless, 220-240V standard,110V available
2. Light and Compact Design, Suitable for a Variety of Applications
3. Single-chip intelligent torque control system with LCD display
4. Two working mode selection: low speed and high speed
5. Heavy Duty Gear Box for Longer Operational Life
6. Easy and safe handling, vibration-free and low-noise technology
7. Torque output is consistently repeatable
8. Accuracy: better than ±5%
9. Variety of Custom Reaction Arms Available Per Customers Requirement
10. 12 Months Warranty

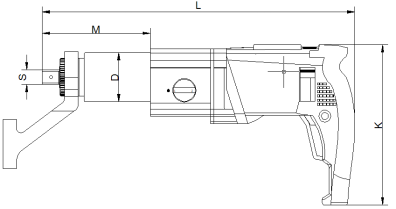

Dimensional Drawing

Specification Table

Model	ETW-10S	ETW-20S	ETW-30S	ETW-40S	ETW-60S	ETW-80S	ETW-100S	ETW-120S
Min torque (Nm)	100	200	400	700	1000	1200	2000	3000
Max torque (Nm)	1000	2000	3000	4000	6000	8000	10000	12000
Drive S	3/4”	1”	1”	1”& 1 1/2”	1 1/2”	1 1/2”	1 1/2”	1 1/2”
D(mm)	65	74	78.5	88	113	120	128	128
L(mm)	420	460	480	500	529	539	555	555
K(mm)	205	205	205	205	205	205	205	205
M(mm)	145	195	215	235	264	274	290	290
Weight without arm(Kg)	5	6.5	8.2	9.5	14.9	16.8	18.3	18.5
RPM	30	12.2	6.3	5.1	2.6	1.8	1.5	1.5

Introduction to Adjustable Torque Plug-in Electric Torque Wrench

Plug-in electric torque wrench refers to a type of wrench that requires a fixed power supply. Compared with battery torque wrenches, their main difference is the two power supply methods of battery and plug-in. Other functions and parts are the same.

Although this type of wired adjustable torque electric torque wrench is inconvenient to move and requires a stable power supply, it can perform more stable and long-lasting bolt tightening and disassembly work.

Application of Plug-in Electric Torque Wrench

This type of wired torque wrench has many uses, from daily life to industrial production. The following lists the specific applications of plug-in torque wrenches in various industries.

Mechanical maintenance and assembly
Bridge construction
Plant and equipment installation
Large machinery and vehicle assembly
High-precision mechanical equipment adjustment
. . .

The torque range of this type of adjustable torque electric wrench is between 100-12000Nm, so in theory, it is suitable for tightening various bolts with torques between 100-12000Nm.

Tutorial: How to Use TorcStark Plug in Electric Torque Wrench?

Advantages of Wired Adjustable Torque Electric Wrench

Stable working state
Continuous high-precision torque output
Light weight, easy to move
Cheap price

Disadvantages

Requires fixed power supply

Adjustable Plug-in Electric Torque Wrench Purchase

When buying a wired electric torque wrench, you need to buy from a high-quality manufacturer or supplier. To ensure that your project can proceed smoothly.

TorcStark has extensive experience in manufacturing plug-in electric torque wrenches. Its wrenches are reliable, with high torque accuracy and adjustable torque function. As one of the top wired electric wrench manufacturers in China, with more than 20 years of manufacturing experience, you can fully trust it.

TorcStark promises to provide 12 months of free repairs, so you can use our wrenches with confidence. Contact us now and you can get a better price!
