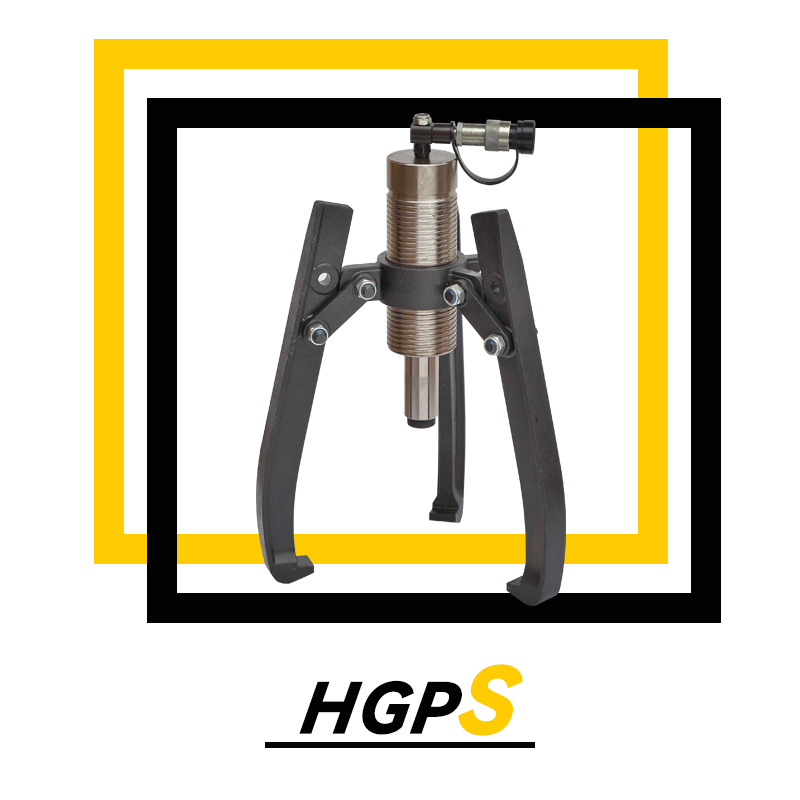

HGP Series – Hydraulic Gear Puller
- 360° rotatable design, users can operate in any direction.
- 7 models with a range from 4 to 50 tons.
- There is a safety valve inside to prevent the puller from overloading and extending the service life.
- 20T, 30T, and 50T models are two-stage designs. The first stage is fast lifting, which can save the preparation time for the piston cylinder to contact the workpiece; the second stage is high-pressure output, which can greatly save the time and number of rocker movements and quickly disassemble the workpiece.
Contact Us
Product Dimensions
| Model | Capacity (T) | Depth of Pullering (mm) | Disassembly diameter(mm) | Stroke (mm) | Weight (Kg) |
| HGPI/S-4 | 4 | 185 | 255 | 60 | 4.5 |
| HGPI/S-6 | 6 | 220 | 330 | 70 | 5.5 |
| HGPI/S-8 | 8 | 230 | 350 | 85 | 6.5 |
| HGPI/S-12 | 12 | 260 | 375 | 85 | 8 |
| HGPI/S-20 | 20 | 360 | 520 | 110 | 22 |
| HGPI/S-30 | 30 | 435 | 550 | 111 | 32 |
| HGPI/S-50 | 50 | 635 | 615 | 111 | 45 |
