ATS Series – Coaxial Square Drive Hydraulic Torque Wrench
- 70MPa max working pressure
- Torque repeatability up to ±3%
- Front reaction arm design, smaller longitudinal dimension
- The reaction arm and square drive are coaxial, better
adaptability. - 10 models with a range from 115-72900Nm.
- 360-degree swivel joint, free operation, no space limitation. Al-Ti alloy material, high strength.

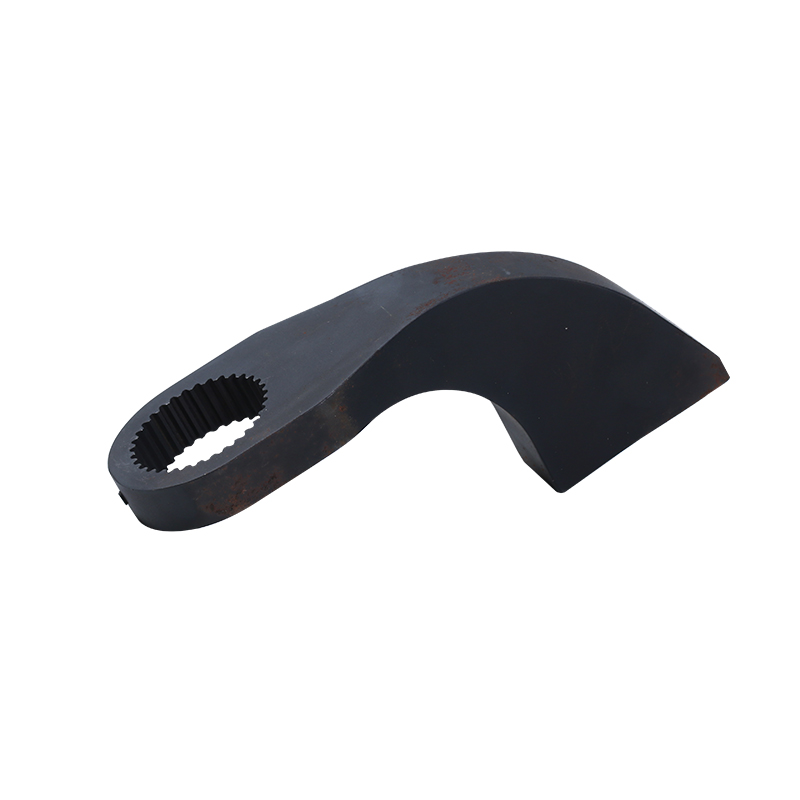

- The reaction arm can be customized.
Contact Us

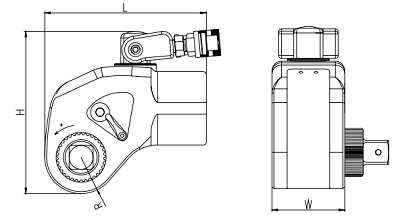

Product Dimensions
| Model | 07ATS | 1ATS | 3ATS | 5ATS | 8ATS | 10ATS | 15ATS | 20ATS | 35ATS | 50ATS |
| Torque (Nm) | 115 1158 | 189 1898 | 427 4276 | 771 7712 | 1098 10982 | 1506 15063 | 1904 19041 | 2460 24601 | 5082 50825 | 7290 72900 |
| Precision | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% |
| Weight(Kg) | 1.1 | 2.4 | 5.1 | 8.4 | 10.3 | 14.6 | 17.8 | 24 | 38 | 55 |
| Max tensile force(KN) | 241 | 400 | 787 | 1029 | 1441 | 1588 | 2034 | 2559 | 3701 | 5308 |
| R(mm) | 25.2 | 29.5 | 38.5 | 47.5 | 54.5 | 62.5 | 64.5 | 68.5 | 85 | 105 |
| L(mm) | 104 | 133 | 171 | 210 | 238 | 266 | 296 | 304 | 375 | 446 |
| H (mm) | 107 | 135 | 172 | 205 | 232 | 253 | 255 | 281 | 374 | 418 |
| W(mm) | 46 | 57 | 77 | 88 | 100 | 111 | 120 | 132 | 170 | 190 |
| Square Drive | 3/4″ | 3/4″ | 1″ | 1 1/2″ | 1 1/2″ | 1 1/2″ | 2″ | 2 1/2″ | 2 1/2″ | 3″ |
