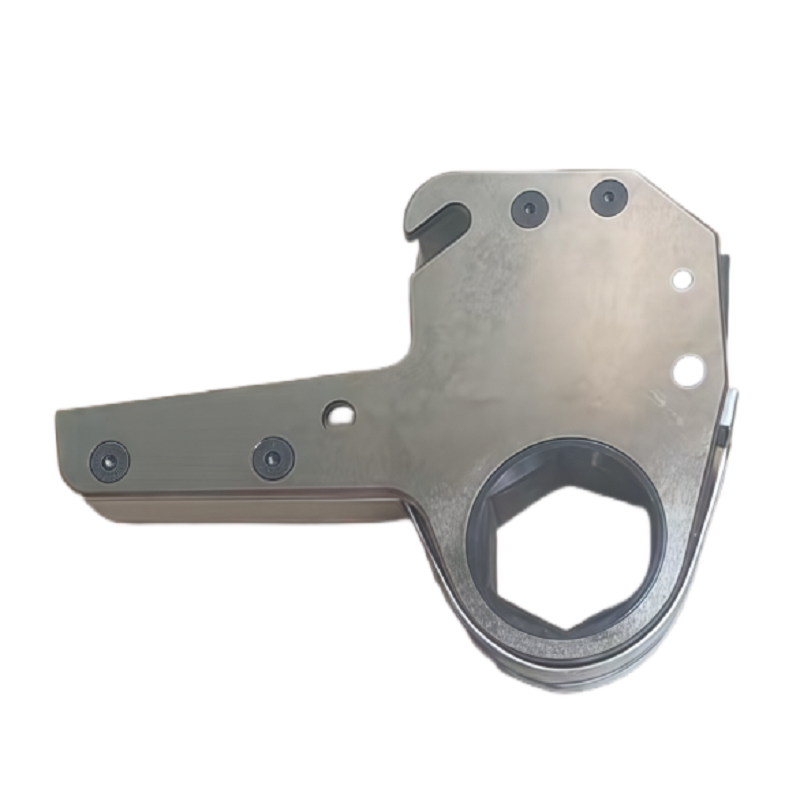

KTS Series – Low Profile Hydraulic Torque Wrench
- 70MPa max working pressure
- Torque repeatability up to 3%
- 7 models with the ranges from 232-41882Nm
- 360×180° swivel joint, no space limitation
- Al-Ti alloy material, Integral design, high strength, and high toughness
- One power head can match different ratchet links.
Contact Us
Product Dimensions
| Model | Torque Range(Nm) | Nut Size(mm) | Power Head Weight(kg) | Cassette Weight(kg) | L(mm) | H1(mm) | H2(mm) | W1(mm) | W2(mm) |
| 2KTS | 232-2414 | 19-60 | 0.9 | 1.5 | 196 | 126 | 102 | 32 | 51 |
| 3KTS | 348-3487 | 41-65 | 1.4 | 2.6 | 221 | 145 | 118 | 36 | 57 |
| 4KTS | 585-5858 | 34-80 | 1.7 | 3.4 | 258 | 163 | 136 | 42 | 66 |
| 8KTS | 1094-10941 | 41-105 | 3.1 | 6.3 | 311 | 192 | 168 | 53 | 83 |
| 14KTS | 1852-18521 | 50-117 | 4.6 | 11.4 | 360 | 225 | 204 | 64 | 99 |
| 18KTS | 2695-26958 | 65-130 | 6.5 | 14.3 | 388 | 264 | 231 | 71 | 109 |
| 30KTS | 4188-41882 | 110-175 | 10.4 | 20.5 | 430 | 303 | 272 | 85 | 131 |
