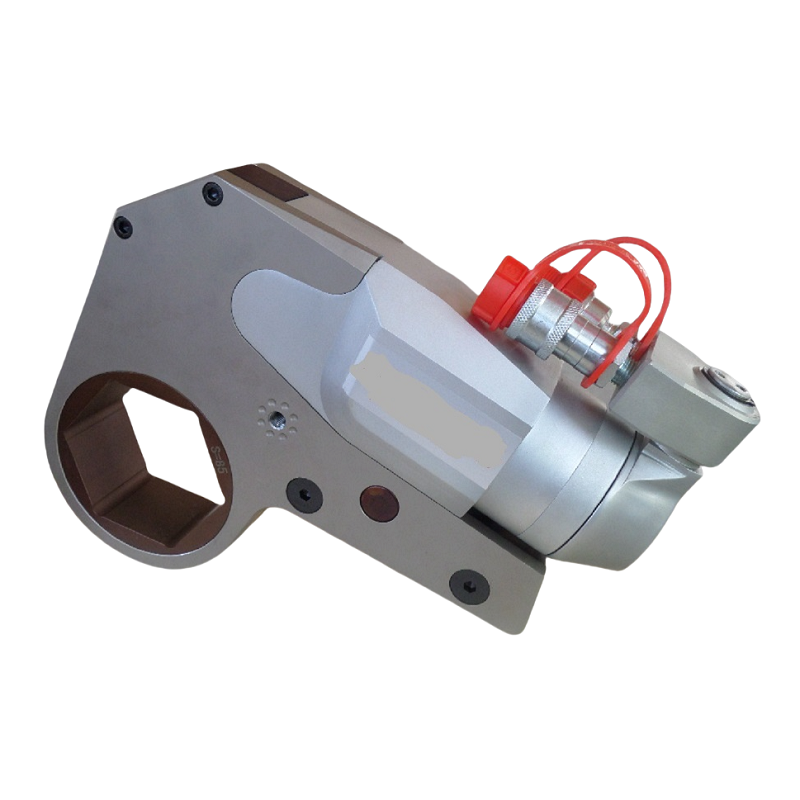

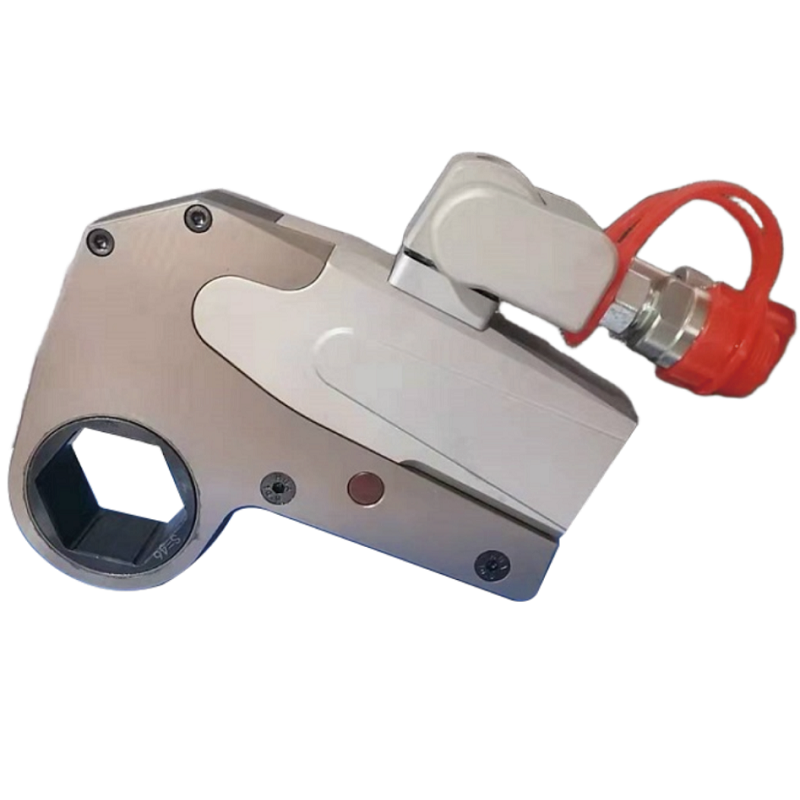

WTH Series – Low Profile Hydraulic Torque Wrench
- 70MPa max working pressure.
- Torque repeatability up to 3%.
- 9 models with a range from 233-140000Nm.
- 360×180 degree swivel joint allows free operation without space limitation.
- Al-Ti alloy material, integral design, longer reaction arm, and higher reliability.
- Lightweight and compact design.
- Ratchet link is interchangeable.
Contact Us

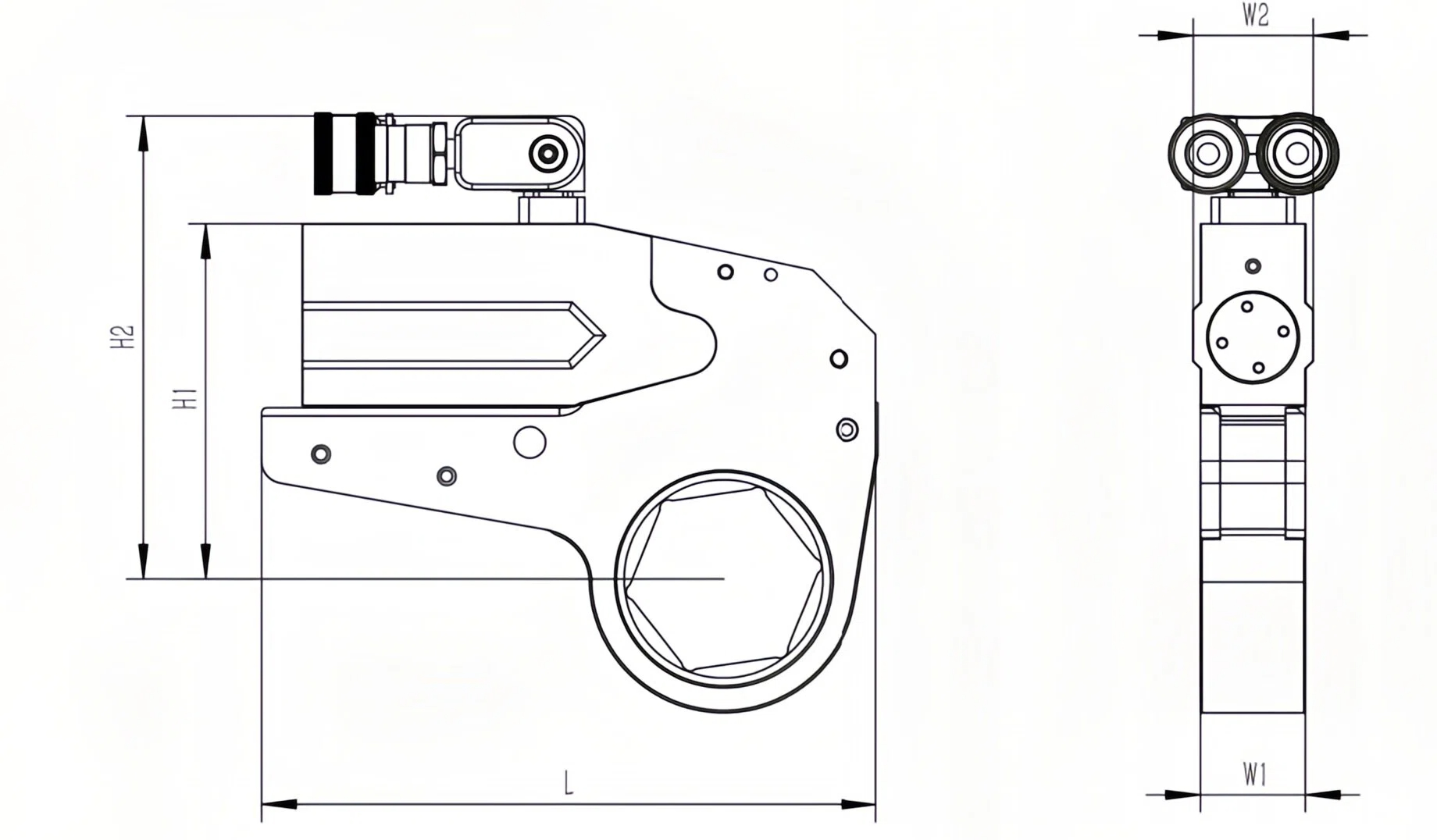

Product Dimensions
| Model | 2WTH | 3WTH | 4WTH | 8WTH | 14WTH | 18WTH | 30WTH | 50WTH | 95WTH |
| Torque (Nm) | 233 2426 | 345 3486 | 580 5859 | 111 11116 | 1852 18519 | 2670 26703 | 4258 42581 | 7412 74121 | 13956 139563 |
| A/F (mm) | 19-60 | 41-65 | 34-80 | 41-105 | 50-117 | 65-130 | 110-175 | 130-180 | 155-190 |
| Power Head Weight (kg) | 0.9 | 1.4 | 1.7 | 3.1 | 4.6 | 6.5 | 10.4 | 21 | 68 |
| Cassette Weight (kg) | 1.5 | 2.2 | 3.4 | 6.3 | 11.4 | 14.3 | 20.5 | 74 | 136 |
| L1 (mm) | 186.1 | 217 | 241 | 300.5 | 361 | 361 | 420 | 539 | 670 |
| H1 (mm) | 103.6 | 125.6 | 141 | 185 | 210.4 | 238 | 270 | 320 | 400 |
| H2 (mm) | 127.6 | 163.4 | 190.5 | 234.5 | 256.8 | 285 | 327 | 383 | 458 |
| W1 (mm) | 32 | 37 | 40 | 53 | 64 | 71 | 84.4 | 94 | 160 |
| W2 (mm) | 35.5 | 42.5 | 49.4 | 60 | 72 | 80 | 95.4 | 102 | 168 |
| A (mm) | 10 | 11 | 15 | 17 | 19 | 23 | 27 | 31.2 | 62.5 |
