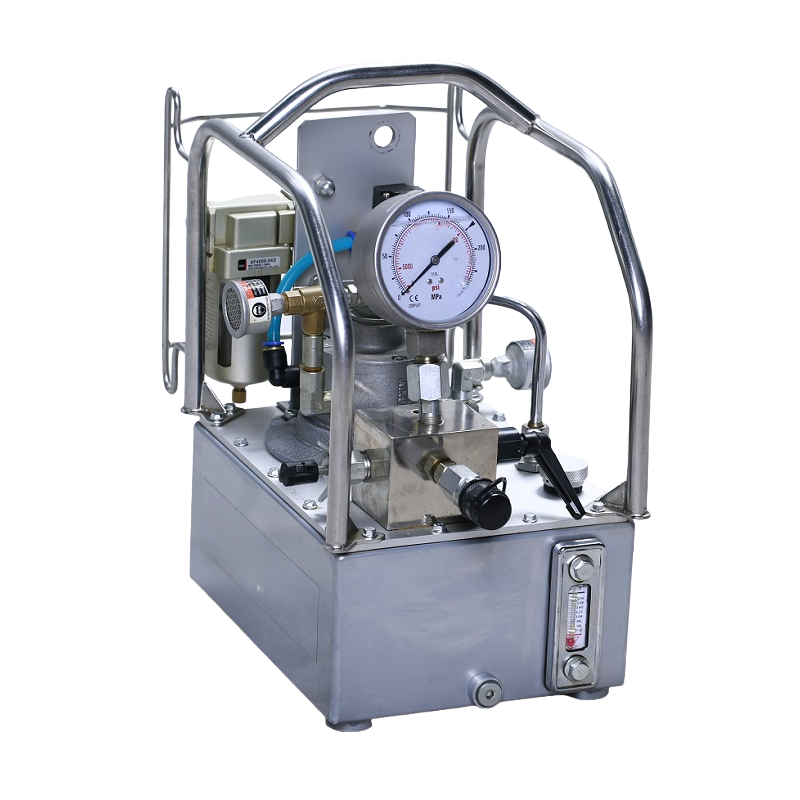

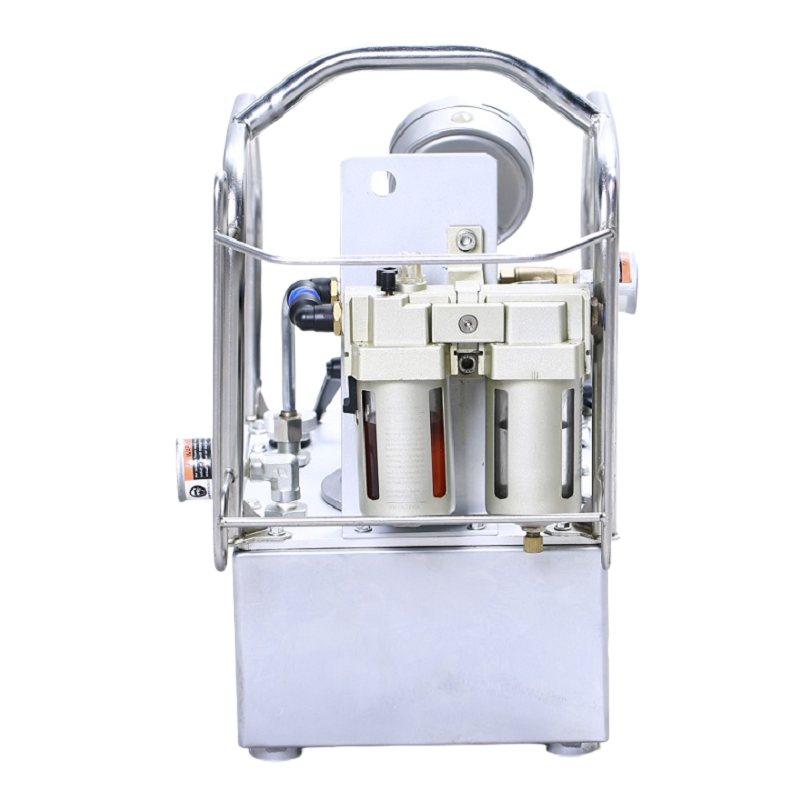

HTP-P-2004 Series – Pneumatic Pump For Bolt Tensioner
- Maximum pressure 200 MPa.
- Suitable for coal mines and other places, it features explosion-proof, safety, no heat generation, and long-term operation.
- High-performance pneumatic motor and directional control valve, safe and reliable, with stable performance.
- Aluminum oil tank with oil level indicator, small in size and light in weight.
- The steel frame can protect the pump body and is easy to carry. Aluminum explosion-proof handle, sturdy and reliable.
- When the pump stops working, press the button to release the pressure.
Contact Us
Product Dimensions
| Model | Gas source | Pressure(MPa) | Flow(L/min) | Oil tank (L) | Dimension (mm) | Weight (KG) | ||||
| Pressure (bar) | Rated power(kw) | Air consumption (m3/h) | High | Low | High | Low | ||||
| HTP-P-2004 | 4-8 | 1.3 | 134 | 200 | 3 | 0.3 | 2.5 | 8 | 428*281*448 | 21 |
